Eco-Smart Food Waste Dryer Models

How much daily food waste do you produce?

That’s the key question as it determines the right model for you. There are six models from 20kg to 350kg per day. These are maximum capacities, so if your volumes are close to the maximum consider going up to the next size or having more than one machine.

Food Waste Dryer Models

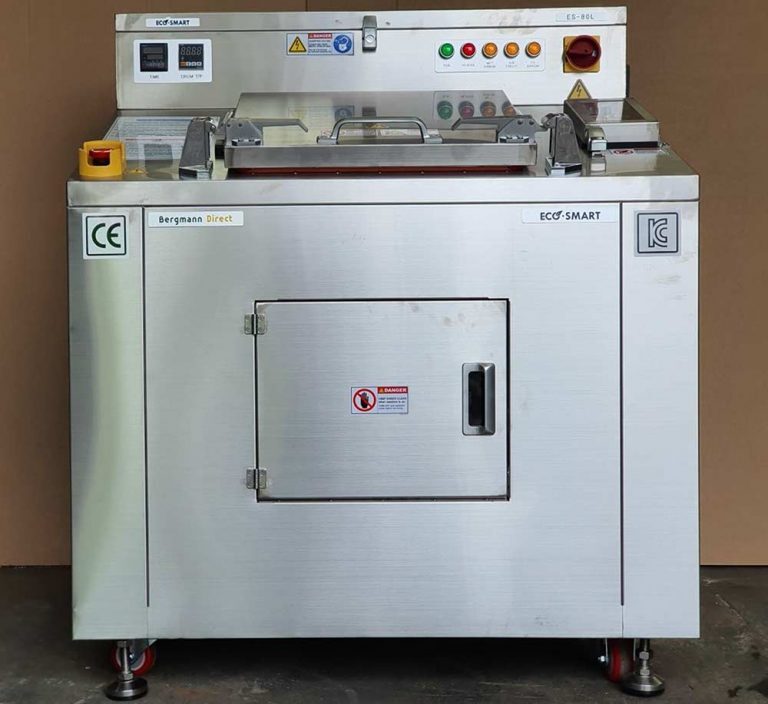

The Eco-Smart Food Waste Dryer is made from high specification stainless steel. All units are have locking castors so can be pushed into position. All you need is a power supply nearby and a standard sink drain (see Installation and Commissioning). It is easy to use, with simple on/off and discharge buttons and high specification RFID interlock sensors. Just load the food waste, close the lid and press the start button - the process is automatic.

ES30

Up to 20kg per day

ES60

Up to 40kg per day

ES80

Up to 50kg per day

ES150

Up to 100kg per day

ES300

Up to 200kg per day

ES500

Up to 350kg per day

	ES30	ES60	ES80	ES150	ES300	ES500
Capacity	Up to 20kg per day	Up to 40kg per day	Up to 50kg per day	Up to 100kg per day	Up to 200kg per day	Up to 350kg per day
Typical cycle time	15kg of food waste: 10-14 hours 20kg of food waste: 16-20 hours	20kg of food waste: 10-14 hours 40kg of food waste: 16-20 hours	25kg of food waste: 8-10 hours 50kg of food waste: 12-14 hours	50kg of food waste: 10-14 hours 100kg of food waste: 12-16 hours	100kg of food waste: 10-14 hours 200kg of food waste: 16-20 hours	180kg of food waste: 10-14 hours 350kg of food waste: 16-20 hours
Dimensions (D x W x H) mm	812 x 681 x 955mm	893 x 791 x 1056mm	892 x 1012 x 1152mm	952 x 1162 x 1347mm	1079 x 1413 x 1428mm	1428 x 1969 x 1708mm
Power Required	Single phase, 220V, 16A	Single phase, 220V, 16A	3 phase, 415V, 32A	3 phase, 415V, 32A	3 phase, 415V, 32A	3 phase, 415V, 63A
Weight of machine	175kg	190kg	290kg	390kg	550kg	770kg
